What’s the worst part about any internet technology? Wait times. Loading screens. Progress bars that drive you to smash your printer and spike your iPhone.

On the technical side, some things you can do to reduce response times is optimize backend logic or implementing cache policies. But many times there’s factors outside of our control, especially if we’re integrating external services.

The flip side, which is always under our control, is to keep the user occupied on the front-end. Use these loading headers to engage your user. They’re a nice surprise, and great touch of detail. Much better to have your audience saying “oooh, that’s cool”, instead of “c’mon, this app is so slow!”. A couple of my favorite examples are Yelp and Snapchat.

Yelp Loading Header

The Concepts

Finally in iOS 6, after everyone and their brother started implementing custom pull-to-refresh controls, Apple enhanced their UITableViewControllers to include the UIRefreshControl. This is the expandable component you see stretched in the header section when a user pulls and invokes the refresh.

There’s many ways to implement this sweet piece of polish. For simplicity, we’re just going to jam a few subviews and images into this UIRefreshControl that will move as we pull, and manipulate a few color properties. Opacity, animations, and more. Follow along =).

The Math

Here, what we have is a view that is being stretched by the user’s pull, up to a threshold. When that threshold is reached, refresh is invoked, and the request is sent. When this happens we perform an animation. On successful response, error, or timeout, this refresh view is hidden.

This following example are my sketch notes from a hackathon project our team built. At the time we couldn’t find any tutorials or documentation on how to do this — so I wrote one =). We’ll derive some math from these.

Refresh Pull Path

Here, as the user pulls, we have two graphics for indicating the refresh invocation. We use a compass icon, sliced into the compass background, and the spinner. These graphics are designed to overlap when we reach the refresh threshold. When we reach that threshold they must overlap and stay together. Upon refresh, we have the spinner perform a rotation animation. On completion, the compass will break apart and hide as the view disappears. See the following graphic.

refresh-tutorial-math
refresh-tutorial-spinner-animation-sketch

Pull-to-refresh states
You can see there are a few refresh states we’ll handle.
1. Pulling
2. Releasing
3. Connected
4. Animating
5. Exiting

The Code

First, we’re going to set up our loading headers when the view loads. We initialize our UIRefreshControl, and set it’s background to clear to hide the boring native loading spinner. We also set clipsToBounds, so our graphics don’t stick out.

Inside of that UIRefreshControl, we add UIView refreshLoadingView to hold our graphics which we’ll be moving and animating, and refreshColorView to flash background colors. The reason we use a separate UIView to change the color background is so that we can adjust it’s alpha property independent of the rest of our graphics. Alpha is the transparency property.

  - (void)setupRefreshControl
  {
  // Programmatically inserting a UIRefreshControl
  self.refreshControl = [[UIRefreshControl alloc] init];

  // Setup the loading view, which will hold the moving graphics
  self.refreshLoadingView = [[UIView alloc] initWithFrame:self.refreshControl.bounds];
  self.refreshLoadingView.backgroundColor = [UIColor clearColor];

  // Setup the color view, which will display the rainbowed background
  self.refreshColorView = [[UIView alloc] initWithFrame:self.refreshControl.bounds];
  self.refreshColorView.backgroundColor = [UIColor clearColor];
  self.refreshColorView.alpha = 0.30;

  // Create the graphic image views
  self.compass_background = [[UIImageView alloc] initWithImage:[UIImage imageNamed:@"compass_background.png"]];
  self.compass_spinner = [[UIImageView alloc] initWithImage:[UIImage imageNamed:@"compass_spinner.png"]];

  // Add the graphics to the loading view
  [self.refreshLoadingView addSubview:self.compass_background];
  [self.refreshLoadingView addSubview:self.compass_spinner];

  // Clip so the graphics don't stick out
  self.refreshLoadingView.clipsToBounds = YES;

  // Hide the original spinner icon
  self.refreshControl.tintColor = [UIColor clearColor];

  // Add the loading and colors views to our refresh control
  [self.refreshControl addSubview:self.refreshColorView];
  [self.refreshControl addSubview:self.refreshLoadingView];

  // Initalize flags
  self.isRefreshIconsOverlap = NO;
  self.isRefreshAnimating = NO;

  // When activated, invoke our refresh function
  [self.refreshControl addTarget:self action:@selector(refresh:) forControlEvents:UIControlEventValueChanged];
  }

Then we add a target, when the UIRefreshControl hits the threshold, on the event UIControlEventValueChanged, we invoke our refresh function. In your app, this is where you’ll make an API call, or do something interesting. In our example, we’re just going to wait for 3 seconds, to simulate a network request.

  - (void)refresh:(id)sender{

  // -- DO SOMETHING AWESOME (... or just wait 3 seconds) --
  // This is where you'll make requests to an API, reload data, or process information
  double delayInSeconds = 3.0;
  dispatch_time_t popTime = dispatch_time(DISPATCH_TIME_NOW, (int64_t)(delayInSeconds * NSEC_PER_SEC));
  dispatch_after(popTime, dispatch_get_main_queue(), ^(void){
  NSLog(@"DONE");

  // When done requesting/reloading/processing invoke endRefreshing, to close the control
  [self.refreshControl endRefreshing];
  });
  // -- FINISHED SOMETHING AWESOME, WOO! --
  }

Now that our views are set up, we can position our loading graphics, the compass and the spinner, to move based on the distance the table is pulled.

Since UITableView is a subclass of UIScrollView, we can use it’s delegate method, scrollViewDidScroll, to be notified every time the table scrolls.

We start by finding the distance the table has been pulled, by getting the bounds of the UIRefreshControl, which expands and contracts accordingly. From there we calculate the pullRatio, or the ratio of the distance pulled, to the distance needed to invoke the refresh. The further we pull, the closer we want to get to the refresh, and the larger this value.

In this scenario, the compass and the spinner begin separated from each other, and as the table is pulled, they get closer together. The goal is to have them overlap in the middle when the refresh threshold is reached. So since we’re approaching the middle, our calculations will be based off this center value, midX.

With graphics and the iOS coordinate system, the X value is the top-left corner of the graphic. If we just assigned the graphics X coordinate to the center value, then it’s top-left corner would be centered, but the graphic as a whole would not be. Therefore to center the graphic, we set it’s X coordinate to this midX, offset by half the width of the graphic,compassWidthHalf.

Therefore, to center our graphics they would be positioned as such:
compassX = midX – compassWidthHalf;
spinnerX = midX – spinnerWidthHalf;

As our graphics move, and before they overlap, we position them according to the following equations. The graphics both start where the pullRatio = 0, and the table has not yet been pulled. There, they begin positioned offset 1 width from the center. As the table moves, pullRatio increases, and the graphics approach the center.

compassX = (midX + compassWidthHalf) – (compassWidth * pullRatio);
spinnerX = (midX – spinnerWidth – spinnerWidthHalf) + (spinnerWidth * pullRatio);

As the graphics move, we test to see if they have overlapped, by checking if they’re positioned within a pixel from each other. Once they overlap, we want to keep them together, so we set our flag isRefreshIconsOverlap. We also want to keep the graphics overlapped while the refreshing is occurring. This is done by checking the UIRefreshControl withrefreshControl.isRefreshing.

Finally, if we’ve detected that we’re refreshing, then we want to execute our animation. For our animation here, we’re going to rotate the spinner and animate the background colors.

The animation is done with UIView’s animateWithDuration method. We provide it with an animation block, where we rotate the spinner by setting it’s transformation matrix. Don’t worry about the math here, just understand the rotation function: CGAffineTransformRotate(self.compass_spinner.transform, M_PI_2). Here we input the current transformation matrix, and set the rotation 90 degrees, or PI/2. Note that this only rotates a quarter turn, so four invocations will be a full rotation. Therefore in our completion method we recursively call this rotation function, if we’re still refreshing. Our animation will continue running, 90 degrees at a time, until complete. We are also cycling through background colors with our colorArray.

  - (void)animateRefreshView
  {
  // Background color to loop through for our color view
  NSArray *colorArray = @[[UIColor redColor],[UIColor blueColor],[UIColor purpleColor],[UIColor cyanColor],[UIColor orangeColor],[UIColor magentaColor]];
  static int colorIndex = 0;

  // Flag that we are animating
  self.isRefreshAnimating = YES;

  [UIView animateWithDuration:0.3
  delay:0
  options:UIViewAnimationOptionCurveLinear
  animations:^{
  // Rotate the spinner by M_PI_2 = PI/2 = 90 degrees
  [self.compass_spinner setTransform:CGAffineTransformRotate(self.compass_spinner.transform, M_PI_2)];

  // Change the background color
  self.refreshColorView.backgroundColor = [colorArray objectAtIndex:colorIndex];
  colorIndex = (colorIndex + 1) % colorArray.count;
  }
  completion:^(BOOL finished) {
  // If still refreshing, keep spinning, else reset
  if (self.refreshControl.isRefreshing) {
  [self animateRefreshView];
  }else{
  [self resetAnimation];
  }
  }];
  }

Putting all of these pieces together, we achieve our intended effect. When the animation is complete, we callresetAnimation to clear our background color and flag variables.

Conclusion

So those are the concepts, and one way to implement these refresh loading animations. They’re an awesome touch of detail, and I hope they can spiff up your apps.

Checkout the following animation for the final product. And hit the Github link below to grab the code. Enjoy!

Github
Objective-C: https://github.com/JackrabbitMobile/JackrabbitRefresh
Swift: https://github.com/JackrabbitMobile/JackrabbitRefreshSwift

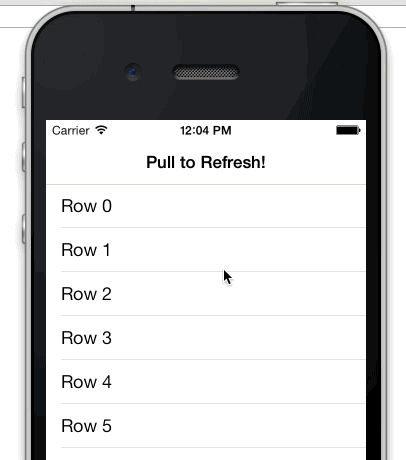

Complete Refresh Demo

Ooooh. Ahhhh! Hope you enjoyed our iOS Custom Pull-to-Refresh Control Tutorial =)

?
